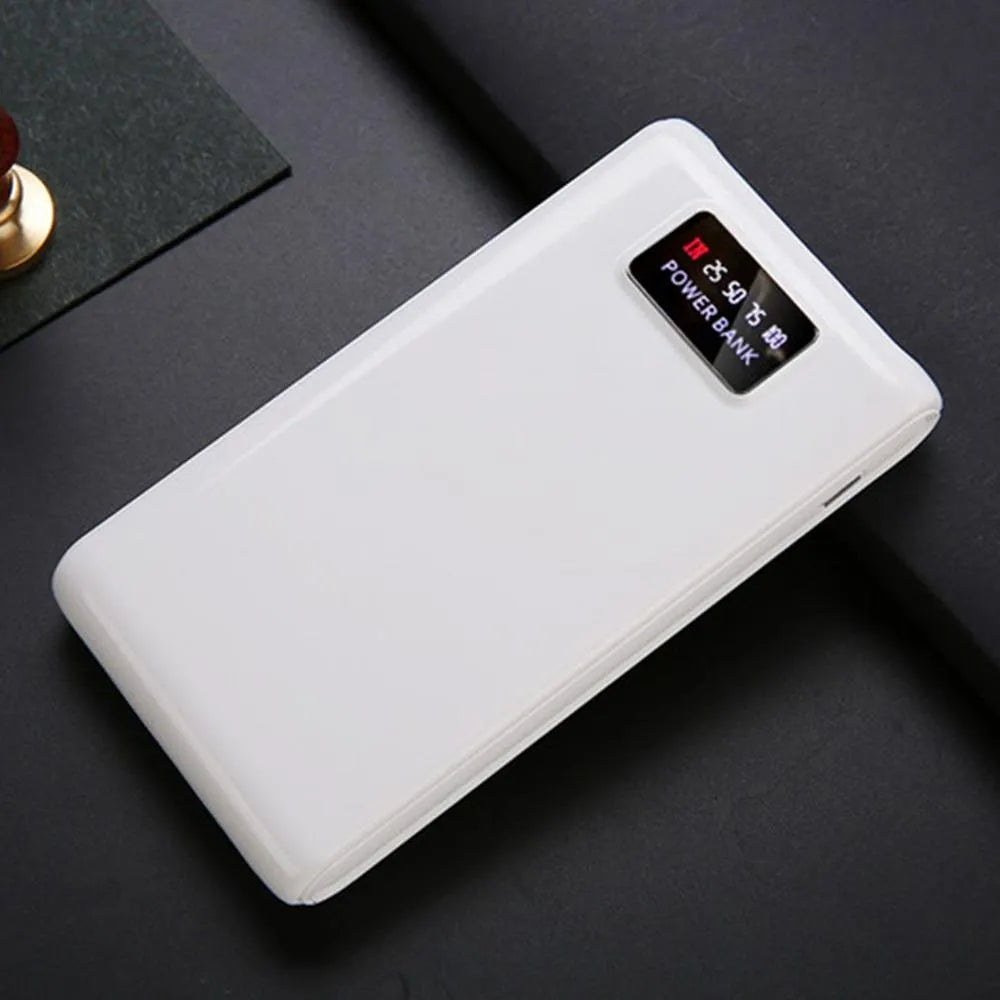

18650 mobile charging bank DIY case kit for custom power bank projects with six battery capacity

This DIY external battery kit provides enthusiasts and makers with a complete foundation for building custom portable power banks using standard 18650 lithium-ion cells. Designed around the ubiquitous 18650 battery format, the kit includes all necessary electronic components pre-installed within a protective case, requiring only the addition of up to six battery cells to create a functional charging bank. The charging circuitry supports both Type-C and traditional Micro USB input connections, offering flexibility in how you recharge your finished power bank from standard USB power sources. With dimensions measuring just 22mm wide by 76mm deep by 150mm tall, the assembled unit maintains a compact form factor suitable for portable power storage applications ranging from emergency backup to outdoor electronics support.

Features and Construction

The C9 model charging bank case incorporates several practical features that simplify DIY power bank creation while maintaining reliable functionality. Its dual-input design accommodates modern Type-C connectors alongside traditional Micro USB ports, ensuring compatibility with various charging cables commonly available. The electronic components are pre-installed within the case housing, reducing assembly complexity to primarily battery installation. This approach makes the kit accessible to both experienced electronics hobbyists and those new to DIY power projects.

Material and Build

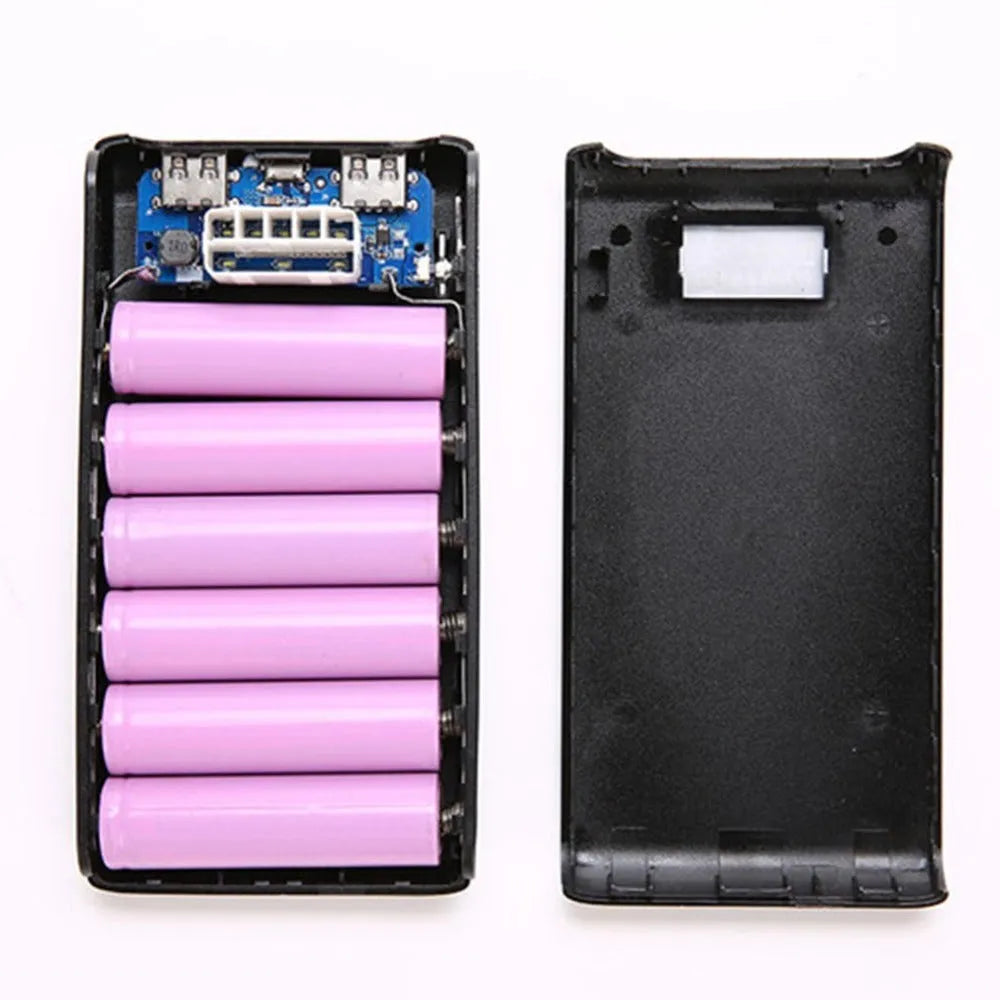

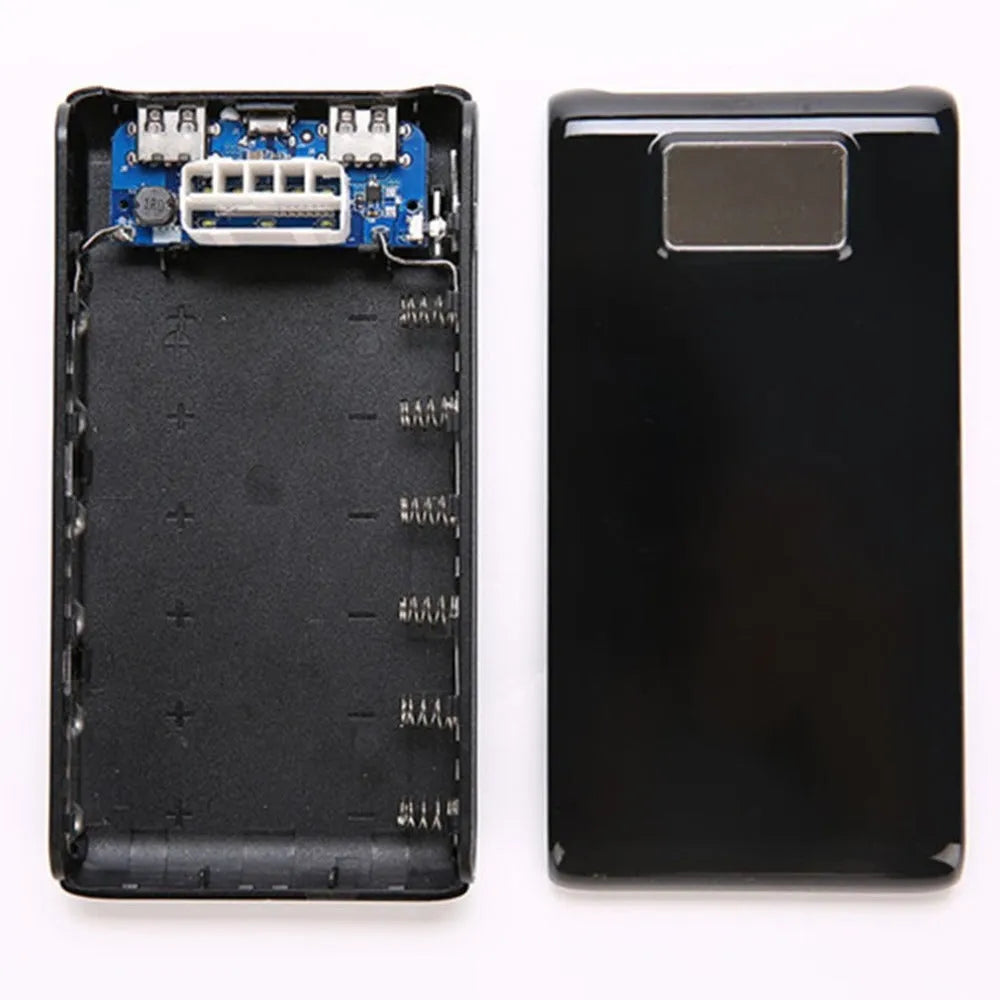

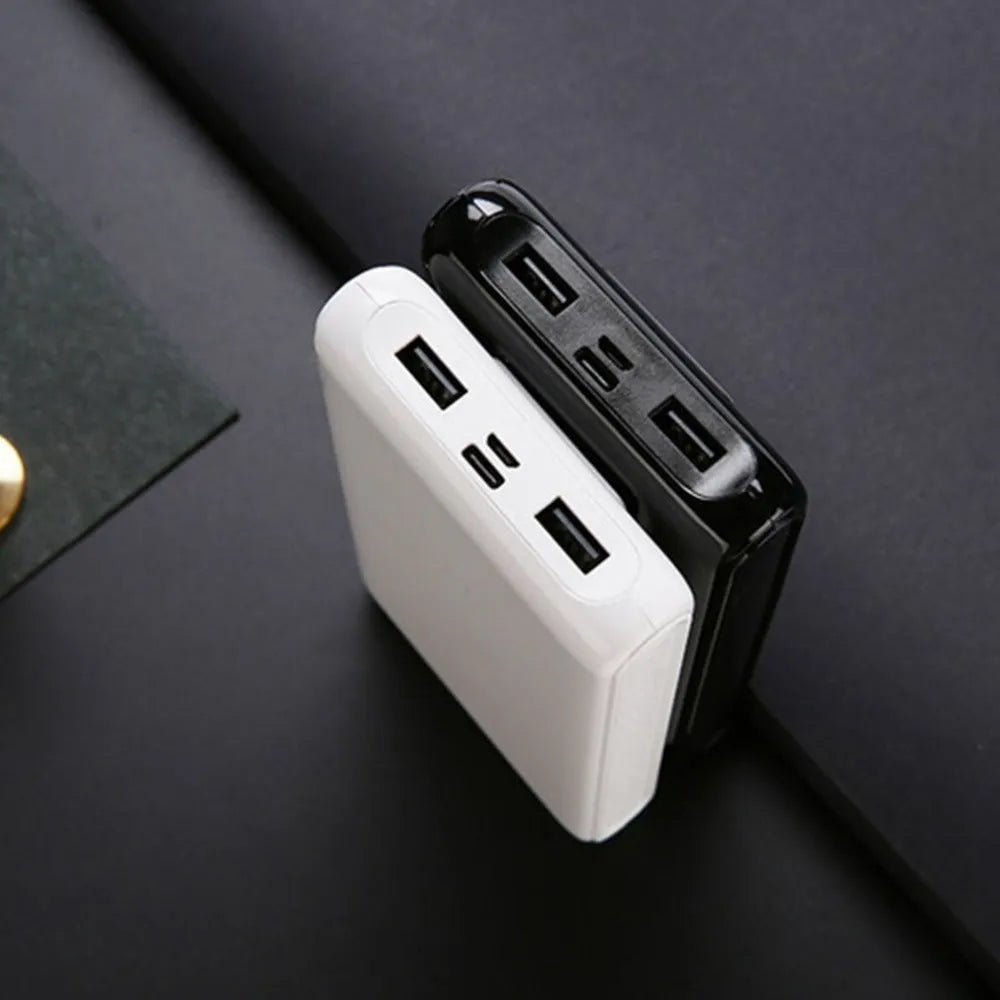

The charging bank utilises a plastic case that houses the electronic circuitry and provides mounting points for the six 18650 battery cells. The plastic construction offers adequate protection for the internal components while maintaining a lightweight profile suitable for portable applications. The case design includes necessary openings for the input and output ports, with the Type-C and Micro USB inputs positioned for convenient access during charging operations. The internal layout is optimised to accommodate standard protected 18650 cells while providing proper electrical connections between the battery array and the charging circuitry.

Size and Practical Fit

With external dimensions measuring 22mm in width, 76mm in depth, and 150mm in height, the charging bank case maintains a compact footprint that fits comfortably in bags, backpacks, or storage compartments. These proportions are specifically designed around the standard 18650 battery format, with the 76mm depth accommodating the typical length of protected 18650 cells including their connection terminals. The 22mm width per cell compartment ensures proper fitment while allowing adequate space for electrical insulation between adjacent batteries. The overall height of 150mm provides sufficient internal volume for the charging circuitry alongside the battery array.

Uses and Placement

The DIY nature of this charging bank kit opens various application possibilities depending on the specific battery cells selected and the user's technical requirements. By choosing different capacity or chemistry 18650 cells, users can tailor the finished power bank to specific runtime needs or discharge characteristics. The 5V2A output specification makes the completed unit suitable for charging most smartphones, tablets, Bluetooth devices, and other electronics that utilise standard USB charging protocols.

Event or Professional Use

For event organisers, photographers, or field technicians, a custom-built power bank using this case can provide reliable backup power for essential equipment. The ability to install six 18650 cells allows for substantial capacity configurations that can support multiple device charges between access to mains power. Professionals might select high-capacity or high-discharge-rate 18650 cells depending on whether they prioritise extended runtime or the ability to charge power-hungry devices quickly. The dual input options mean field charging can utilise whichever cable type is available at temporary power stations or vehicle charging points.

Everyday Home Use

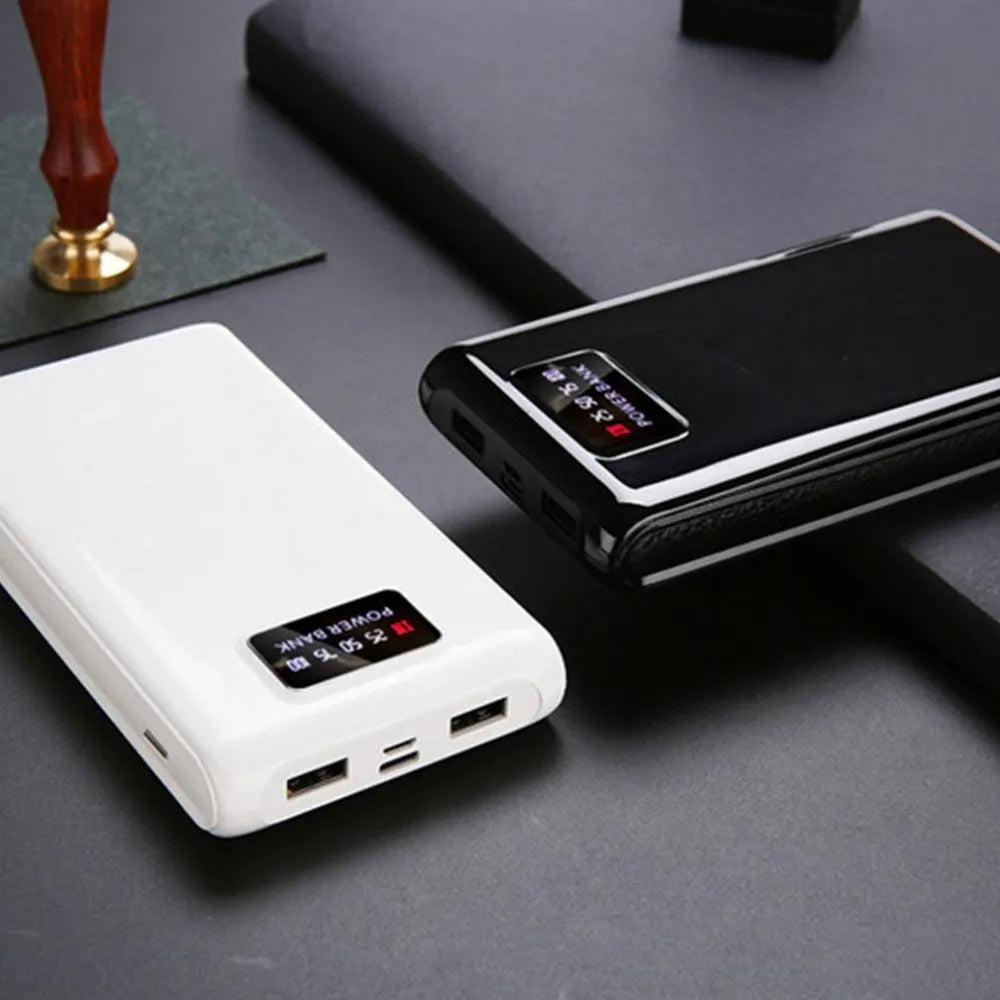

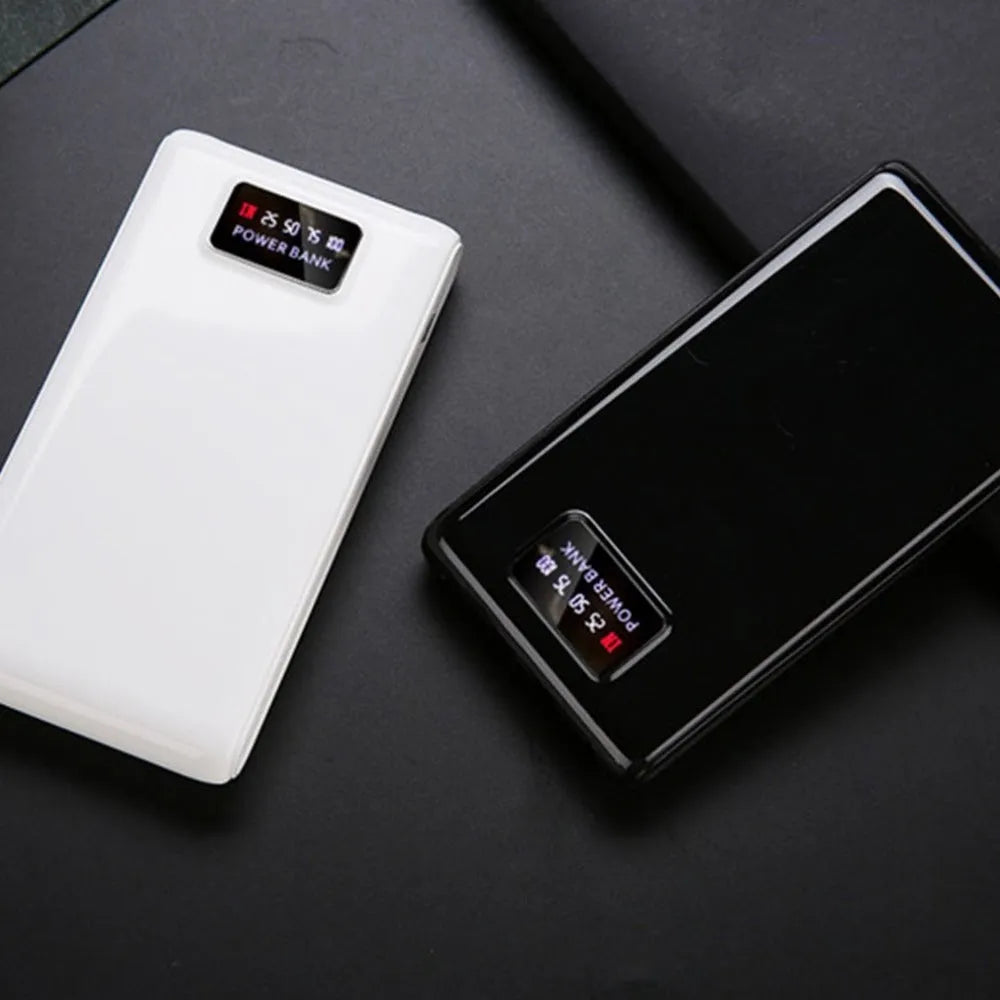

For household applications, this DIY charging bank offers a cost-effective alternative to pre-built power banks, particularly for users who already possess 18650 cells from previous projects or retired laptop batteries. Home users can create custom power banks sized appropriately for family outings, camping trips, or emergency preparedness kits. The black and white colour options allow the finished unit to blend with other electronics in home environments. Parents might appreciate building power banks with specific capacity limits for children's devices, while hobbyists can experiment with different battery configurations for various household electronics projects.

Benefits and Buying Value

The primary benefit of this DIY charging bank kit lies in its customisability and component-level value. Rather than purchasing a complete power bank with fixed specifications, users can select exactly which 18650 cells to install based on current availability, budget considerations, or specific performance requirements. This approach potentially extends the useful life of the charging bank, as individual cells can be replaced if they degrade over time rather than discarding the entire unit. The kit format also provides educational value for those interested in learning about battery technology and power bank operation principles.

Reuse and Low Maintenance

The modular design centred on standard 18650 cells facilitates component reuse across multiple projects or generations of power banks. As battery technology evolves or user needs change, the cells from a previous build can potentially be repurposed for other applications. The simple construction with primarily plastic components requires minimal maintenance beyond occasional cleaning of the charging ports. Should the electronic circuitry eventually fail, the 18650 cells themselves retain value for other projects, reducing overall electronic waste compared to completely integrated power bank designs.

Why Choose This Product

This charging bank case kit appeals specifically to users who value customisation, technical understanding of their devices, and potential long-term value through component reuse. Unlike pre-assembled power banks with fixed specifications, this kit allows tailoring capacity, output characteristics, and even aesthetics through cell selection and optional external modifications. The inclusion of both Type-C and Micro USB inputs provides forward compatibility with newer devices while maintaining backward compatibility with existing charging cables. For electronics enthusiasts, makers, or those simply preferring to understand exactly what powers their devices, this DIY approach offers transparency and control unavailable in most commercial power bank products.
