35mm Hinge Locating Ruler with Adjustable Margin and Hard Alloy Blade for Woodworking

Installing cabinet door and wardrobe hinges accurately is essential for a professional finish and smooth operation. This aluminium alloy hinge locating ruler is designed specifically for 35mm extended arm or middle bend hinges, providing a reliable and repeatable method for marking screw hole positions. Its key advantage is the adjustable opening margin, which can be set to 3mm, 4mm, 5mm, or 6mm, allowing you to tailor the hinge recess to your specific project requirements. The integrated hard alloy limit tapper blade ensures your markings are crisp and precise, simplifying the entire installation process whether you're a DIY enthusiast or a professional woodworker.

Features and Construction

This tool combines practical design with specific material choices to deliver a focused solution for hinge installation. It is built for accuracy and ease of use, translating measurements directly into precise markings on your workpiece.

Material and Build

The main body of the hinge locating ruler is fabricated from aluminium alloy. This material choice results in a tool that is both lightweight for easy handling and robust enough to withstand repeated use in a workshop environment. The most critical component is the limit tapper blade, which is made from a hard alloy. This blade has undergone a high-temperature heat treatment process, which significantly increases its hardness. This treatment makes the blade sharp and provides wear resistance, ensuring it can make clear, deep markings without quickly dulling, which is vital for accurate and efficient work.

Size and Practical Fit

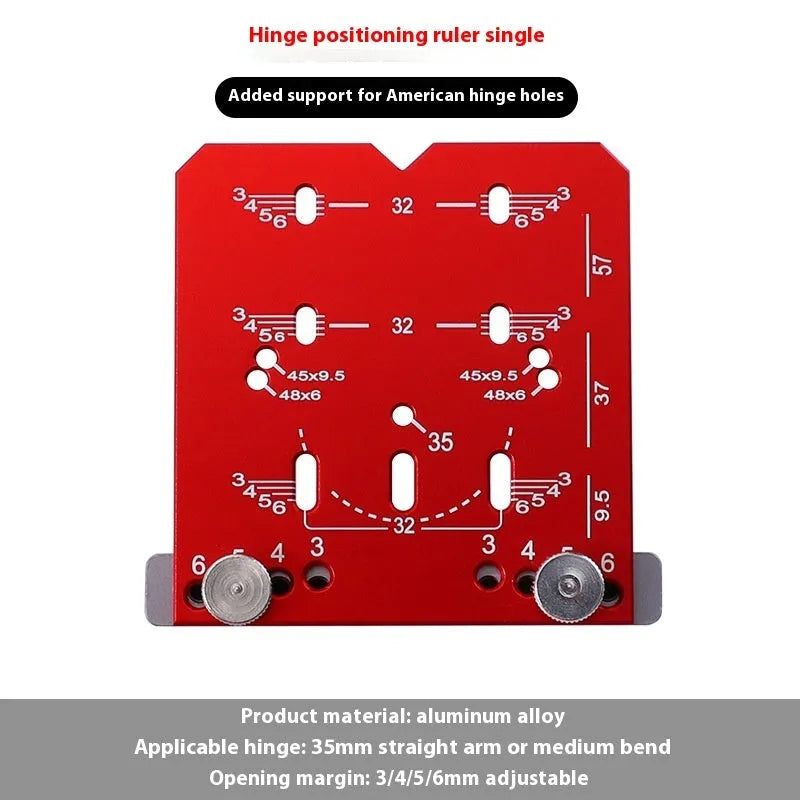

The tool is specifically engineered for compatibility with 35mm cabinet hinges, the standard size for extended arm and middle bend hinges commonly used in kitchen cabinets and wardrobes. This dedicated sizing means it will not fit other hinge types, ensuring you purchase the correct tool for the job. The core functionality lies in its adjustable opening margin, which offers four preset positions: 3mm, 4mm, 5mm, and 6mm. This adjustability provides flexibility for different cabinet door thicknesses or personal preference for the hinge inset, making it a versatile single tool for multiple similar tasks.

Uses and Placement

The primary and confirmed use for this locating ruler is the installation of hinges on cabinet doors and wardrobes in a home setting. It transforms a task that requires careful measurement and alignment into a straightforward, templated process.

Event or Professional Use

For professional cabinet makers, kitchen fitters, or joiners, consistency and speed are paramount. This tool allows for rapid, identical marking-out of multiple hinge positions across a set of cabinet doors, ensuring every door hangs uniformly. The hard alloy blade creates a clear centre-punch guide, reducing the risk of drill bit wander and ensuring hinges are mounted squarely. This reliability helps maintain high standards of finish and reduces call-backs for misaligned doors, proving its value in a professional toolkit.

Everyday Home Use

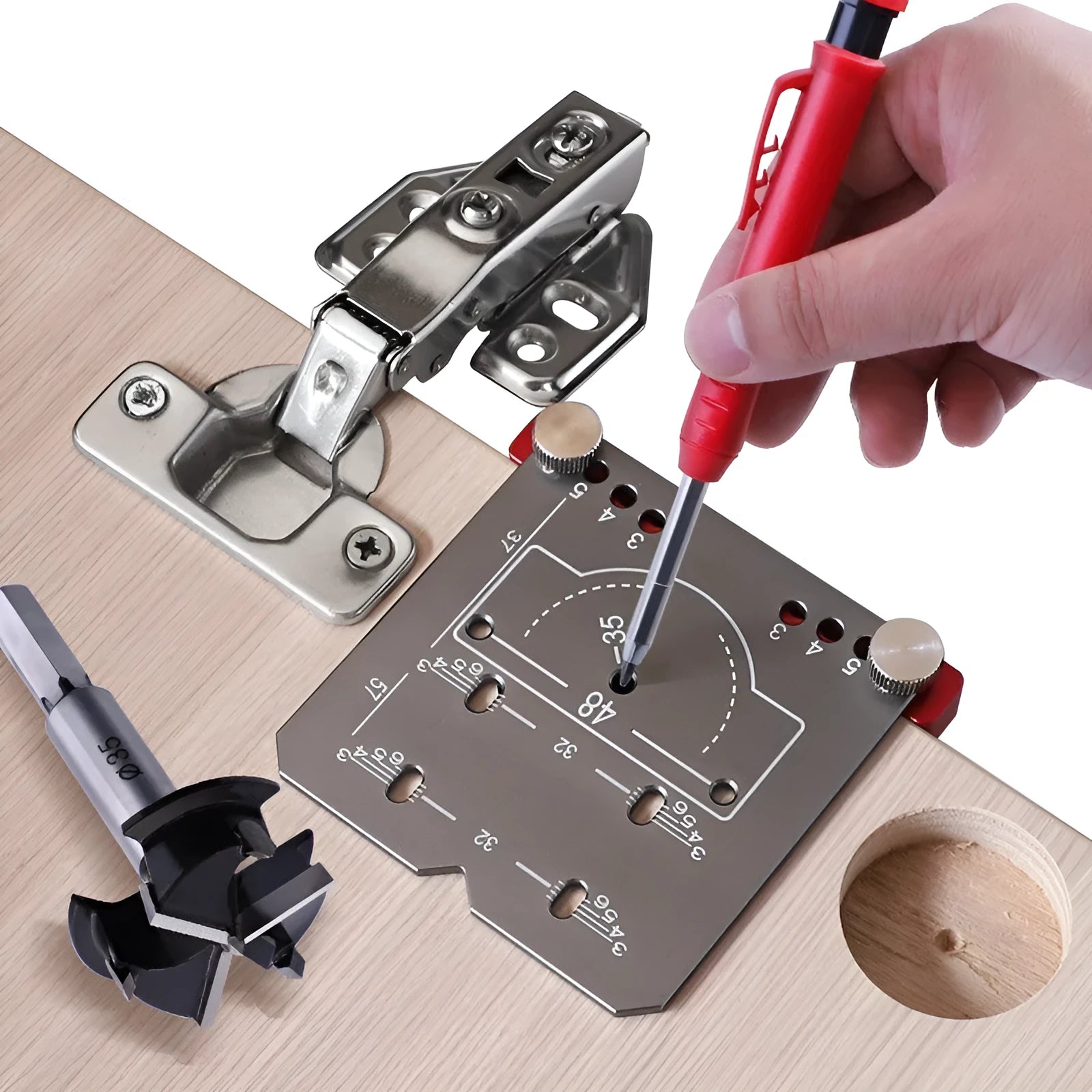

For the DIY enthusiast tackling a kitchen upgrade, wardrobe build, or any furniture project involving 35mm hinges, this tool demystifies a crucial step. It eliminates the need for complex calculations, squares, and careful measurement for each hinge. Simply set the desired margin, clamp or hold the ruler in place, and use the blade to mark the hole centres. This simplicity reduces errors, saves considerable time, and increases confidence, helping DIYers achieve a neat, professional-looking result on their home improvement projects.

Benefits and Buying Value

Investing in a dedicated tool like this hinge locator offers clear advantages over improvised methods, focusing on accuracy, repeatability, and long-term utility.

Reuse and Low Maintenance

As a solid metal tool, this hinge locator is built for reuse over many projects. The aluminium alloy body is resistant to corrosion and will not warp. The wear-resistant nature of the heat-treated hard alloy blade means it will retain its sharpness through extensive use, requiring minimal maintenance beyond basic cleaning. There are no moving parts to wear out or electronic components to fail, making it a dependable, long-lasting addition to your toolbox that will be ready whenever a hinge installation task arises.

Why Choose This Product

This product stands out for its specific and practical design. It is not a generic marking tool but a purpose-built solution for a common and precise task. The combination of an aluminium alloy frame, an adjustable margin gauge, and a dedicated hard alloy blade offers a complete package. When compared to using a ruler, pencil, and square, this tool provides greater speed and eliminates cumulative measurement errors. Its value lies in transforming a tricky manual process into a simple, foolproof operation, ensuring perfect hinge alignment for doors that open and close smoothly every time.
