BMW Diagnostic Adapter Cable: 20-Pin to 16-Pin OBD2 Connector
This specialist adapter cable bridges the gap between modern OBD2 diagnostic equipment and the legacy 20-pin diagnostic port used by various BMW models. It allows mechanics, technicians, and enthusiasts to use standard 16-pin OBD2 scanners and code readers on compatible BMW vehicles, facilitating essential tasks like reading engine fault codes, monitoring live data streams, and performing system checks. The adapter is engineered to work with the vehicle's 12V electrical system and is rated for operation in environments with temperatures up to 45°C, making it suitable for use in most workshop conditions.
Features and Construction
This adapter serves a single, clear purpose: converting a BMW-specific interface to a universal standard. Its design is focused on reliable signal transmission between the car's ECU and your diagnostic tool.
Material and Build

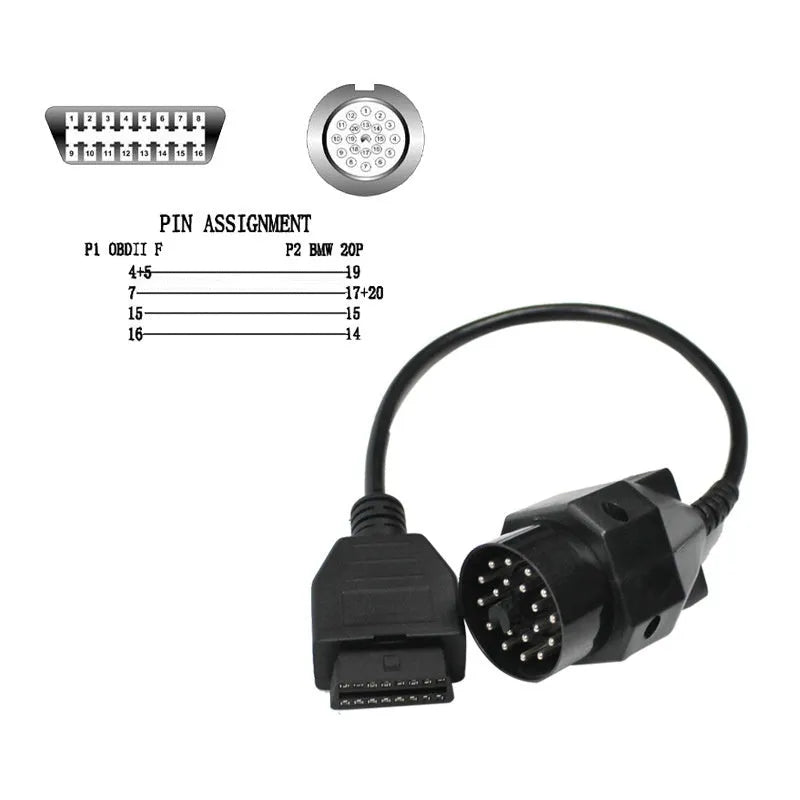

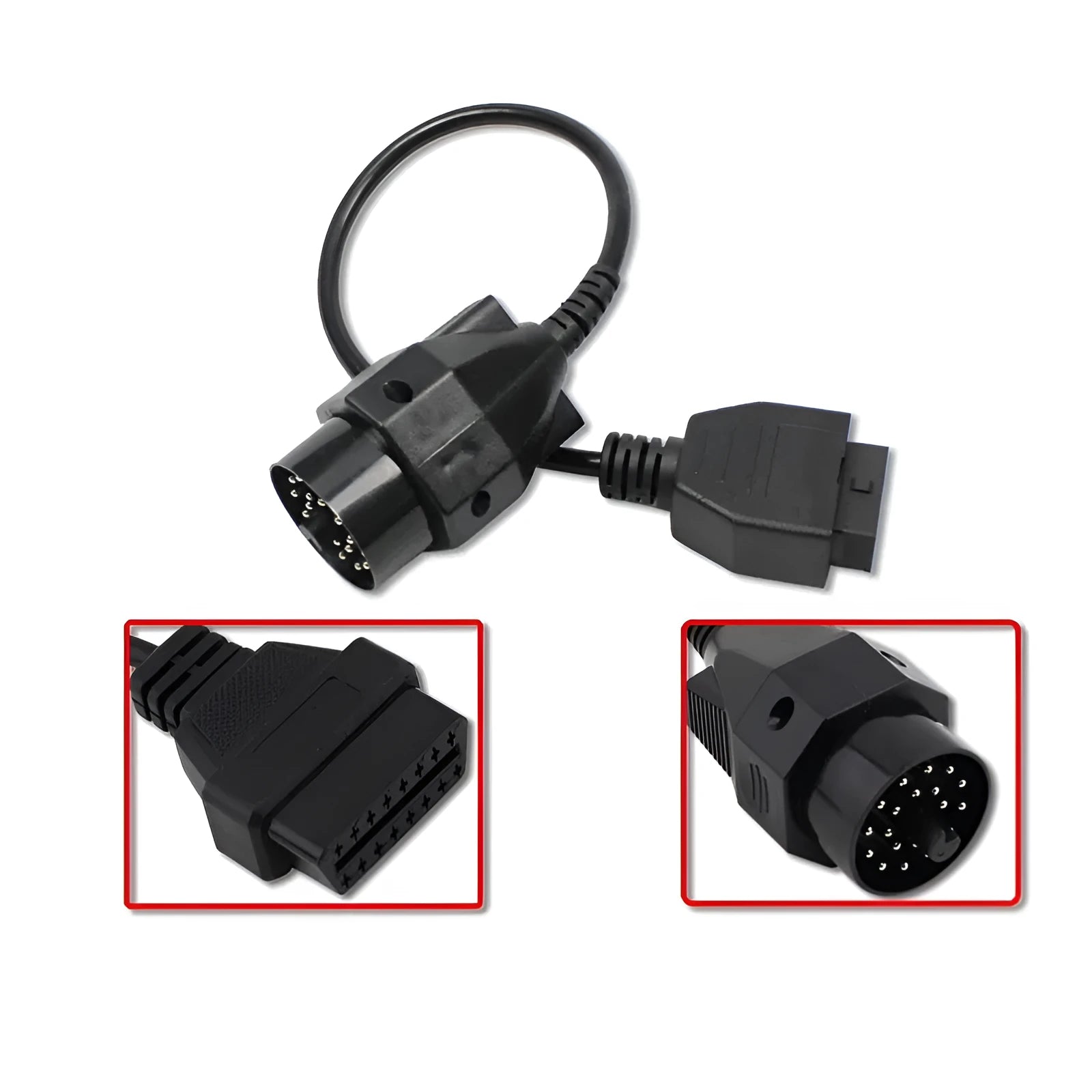

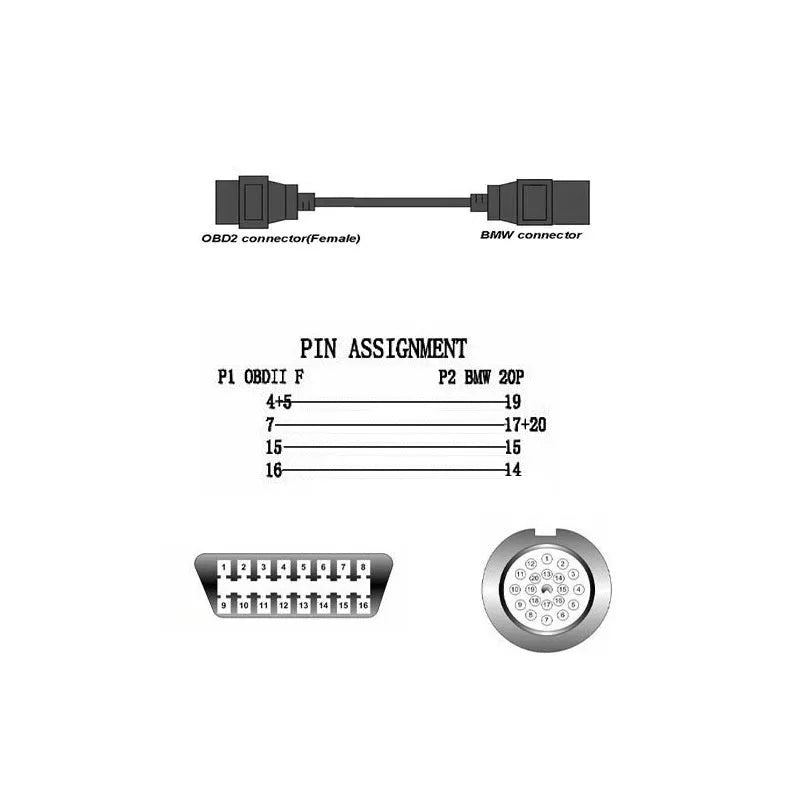

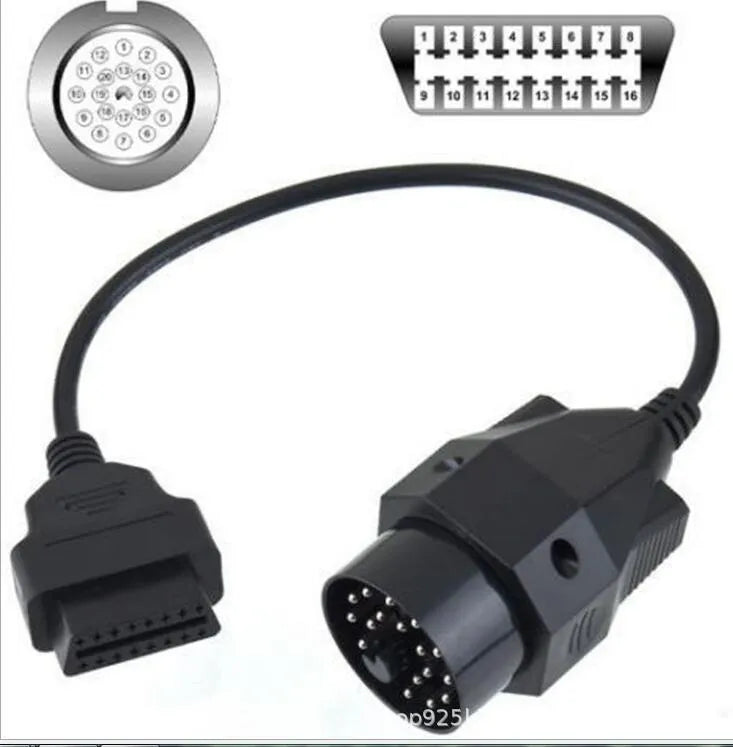

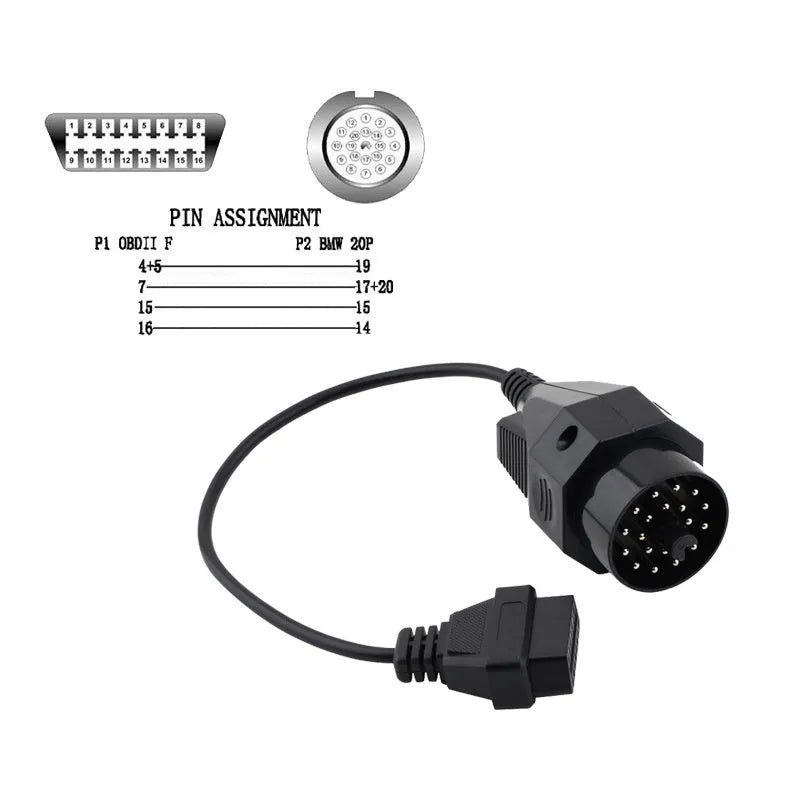

The adapter is built from connecting cables which form the essential conductive pathways. The construction creates a robust, single-piece unit with a BMW 20-pin plug moulded on one end and a standard 16-pin OBD2 female socket on the other, ensuring a secure physical connection at both ends. Specific details regarding wire copper content, shielding, or outer jacket material are not provided.
Size and Practical Fit
The adapter's form factor is designed for the specific spatial requirements of a BMW's diagnostic port location. While exact cable length is not stated, it provides sufficient reach to connect a scan tool conveniently. The 16-pin OBD2 socket conforms to the standard shape and pin layout defined by SAE J1962, ensuring compatibility with a vast range of aftermarket and professional diagnostic devices.
Uses and Placement
This cable has a defined role in vehicle maintenance and troubleshooting, specifically for a targeted range of BMW cars.
Professional Workshop Use
For professional technicians, this adapter integrates seamlessly into the diagnostic workflow for qualifying BMW models. It eliminates the need for proprietary BMW-specific scan tools for basic OBD2 functions, allowing garages to use their existing, familiar diagnostic hardware. It is suitable for pre-delivery inspections, routine service checks, and initial fault diagnosis on supported vehicles.
DIY and Enthusiast Use
For the home mechanic or BMW owner, this cable enables access to basic diagnostic information using affordable, generic OBD2 code readers or Bluetooth adapters. This can be invaluable for identifying the cause of a check engine light, resetting service indicators, or monitoring sensor data before a professional garage visit, provided the vehicle model is compatible.
Benefits and Buying Value
The value of this product lies in its specificity and its role as a simple interface converter, unlocking standard tool functionality.
Reuse and Low Maintenance
As a passive adapter with no internal electronics, it requires no maintenance, software updates, or power source. The solid construction suggests it can be used repeatedly across multiple servicing sessions or on different qualifying vehicles within a fleet, representing a long-term addition to a toolkit.
Why Choose This Product
This adapter is chosen for its targeted functionality—it solves the specific connectivity problem presented by BMW's 20-pin diagnostic port. Its value is in enabling the use of widely available, often less expensive, OBD2 tools instead of being locked into manufacturer-specific hardware for fundamental diagnostic tasks, provided your BMW model is confirmed to use this port type.
