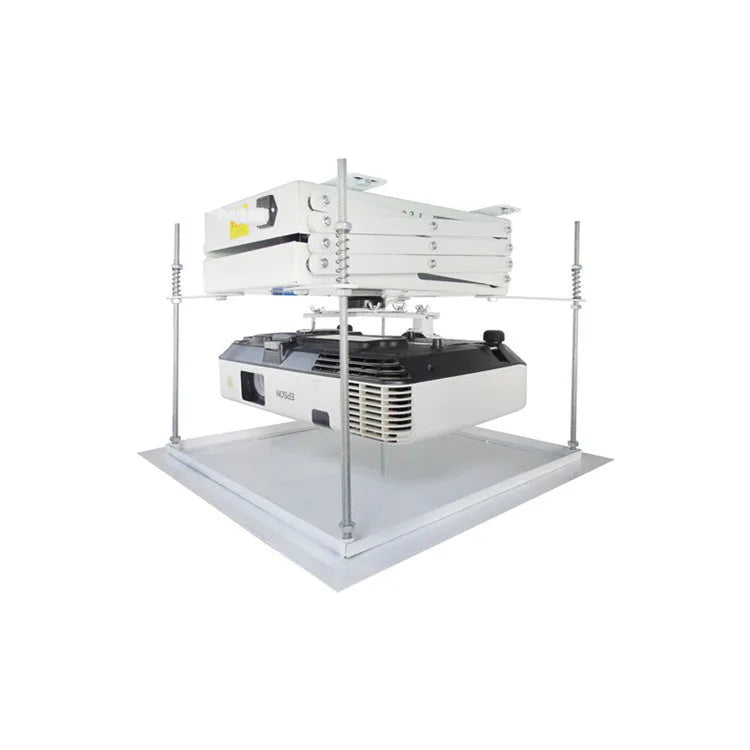

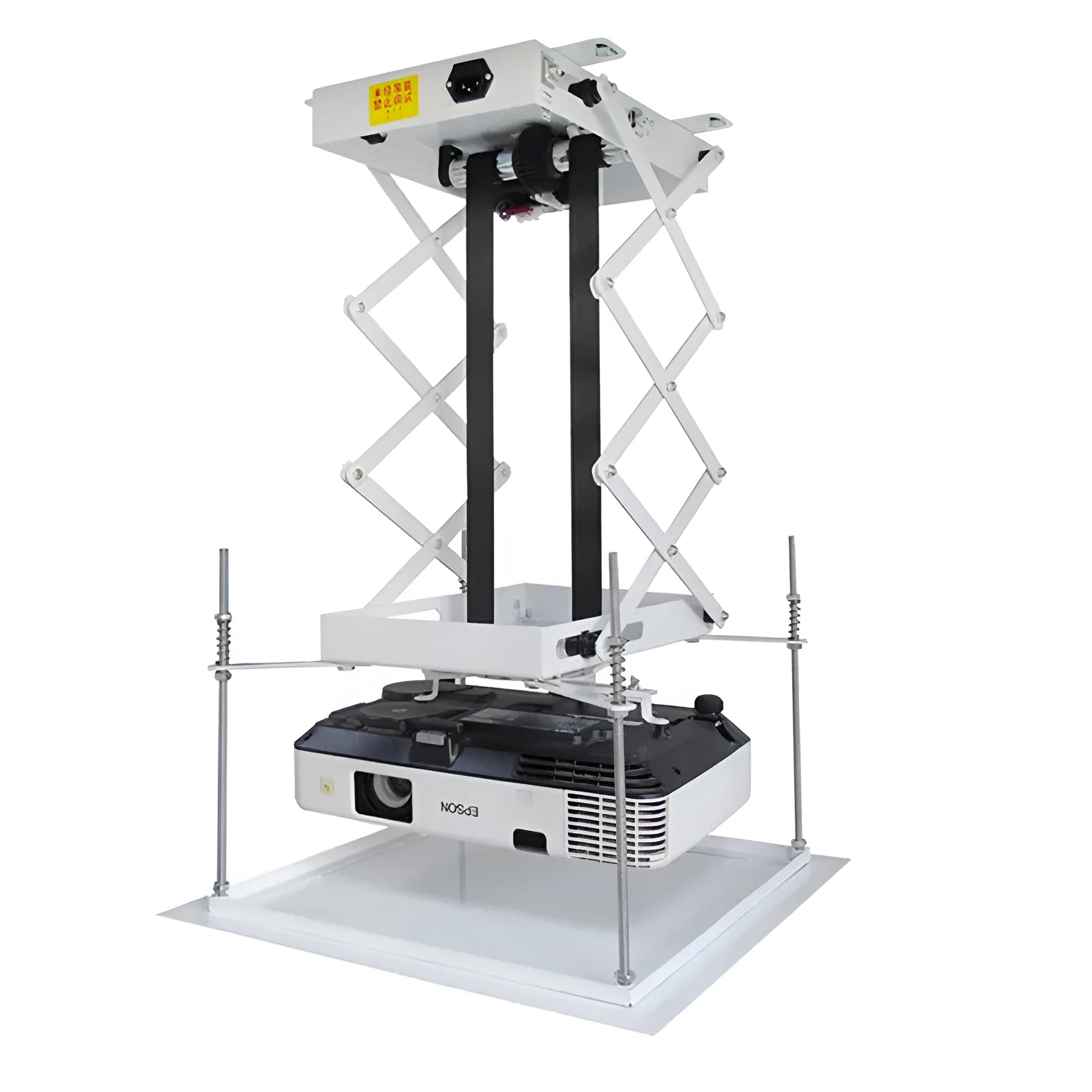

Electric Ceiling Projector Lift Hanger with Ultra-Thin 10cm Chassis and Wireless Remote Control

This electric lifting hanger provides a professional, motorised solution for integrating a projector into a ceiling space. Designed for environments where projector placement needs to be both secure and adjustable, such as home cinemas, boardrooms, or lecture halls, it allows the projector to be deployed or retracted silently at the touch of a button. The system eliminates the need for fixed, bulky mounts by offering a choice of vertical travel distances: 0.8 metres, 1 metre, or 1.5 metres. With a robust 10kg maximum load capacity, it accommodates a variety of projector models. Its key design feature is an ultra-thin chassis, standing just 10cm tall, which enables a sleek and integrated appearance once installed in the ceiling void.

Features and Construction

The hanger is built around a 48W synchronous motor, engineered for quiet and reliable operation. This motor, powered by standard 220V/50HZ mains electricity, drives the lifting mechanism to provide smooth vertical travel. The chassis and structural components use a combination of metals and high-strength plastics to achieve the necessary rigidity while supporting the specified load.

Material and Build

The construction focuses on delivering the stated mechanical performance. The motor assembly is housed within the chassis, and the lifting mechanism is designed to extend and retract the projector mounting section reliably. The materials are selected for their structural properties to ensure the unit can safely handle the 10kg load throughout its specified travel range. The build prioritises functional durability for repeated use over its operational life.

Size and Practical Fit

Critical to installation are the precise dimensions provided. The chassis itself is only 10cm high, allowing it to fit within shallow ceiling voids. The lifting claw adds a further 6cm. When fully extended, the unit has an 18cm unfolded section plus the 70cm length dedicated to mounting the projector. The base plate has an outer dimension of 48cm x 48cm and an inner dimension of 42cm x 42cm. For installation, a ceiling opening of 45cm x 45cm is recommended to ensure a proper fit and clean finish.

Uses and Placement

This product is intended for fixed installation in a ceiling, transforming how a projector is stored and used in a dedicated space. It brings the projector down to its optimal viewing position when in use and retracts it safely out of sight afterwards.

Event or Professional Use

In commercial settings like conference rooms, training facilities, or hospitality venues, the wireless remote control allows staff to prepare the room quickly without needing ladders or manual adjustment. The ability to retract the projector protects it from dust and accidental damage when not in use. The specified travel distances allow for fine-tuning the projection height based on screen size and room layout, supporting a professional, polished presentation environment.

Everyday Home Use

For home cinema enthusiasts, the system offers significant convenience and improves room aesthetics. The projector can be completely hidden in the ceiling, preserving a clean interior design. The remote control enables effortless operation from your seating position, making it easy to start a movie night. The ultra-thin 10cm chassis is particularly beneficial in residential settings where ceiling void depth may be limited, facilitating installation in more rooms.

Benefits and Buying Value

The value of this electric lifting hanger lies in its combination of precise mechanical function, installation flexibility, and user convenience. It addresses specific practical needs associated with ceiling-mounted projection.

Reuse and Low Maintenance

As a permanently installed piece of equipment, the hanger is designed for long-term reuse. The synchronous motor and mechanical components are built for repeated cycling. Maintenance is minimal, primarily involving ensuring the mounting remains secure and the travel path is unobstructed. The use of standard mains voltage (220V/50HZ) means no special power supplies or converters are required for ongoing operation.

Why Choose This Product

This product stands out for its concrete specifications: the ultra-thin 10cm chassis, the choice of three precise travel distances, and the 10kg load capacity. It provides a motorised solution where manual pulleys or fixed mounts are less convenient or visually intrusive. The inclusion of wireless remote control is a key differentiator, offering full functionality without the need for physical interaction with the ceiling unit. When selecting a projector lift, these measurable features—chassis height, travel distance, load rating, and control method—provide clear criteria for ensuring it meets the requirements of your specific space and equipment.
